How Embroidery Machines Read Digitized Files: A Beginner-Friendly Guide
Have you ever wondered how an embroidery machine knows exactly where to stitch, when to change colors, or when to trim the thread? The answer lies in the embroidery digitized file.
Unlike regular image files like JPG or PNG, embroidery machines cannot “see” artwork the way humans do. Instead, they read a special set of instructions created during the digitizing process. These instructions tell the machine every movement it needs to make to turn a design into stitches. In this guide, we’ll explain how embroidery machines read digitized files, what information those files contain, and why proper digitizing is essential for high-quality embroidery results.
What Is a Digitized Embroidery File?
A digitized embroidery file is a machine-readable file that contains stitch instructions for an embroidery machine.
Instead of storing pixels like a photo, the file stores data such as:
- Stitch locations
- Stitch types
- Stitch direction
- Thread color changes
- Trim commands
- Machine speed instructions
Think of it like a GPS route for your embroidery machine. The file tells the machine exactly where to go and what to do step-by-step.
Without digitizing, an embroidery machine cannot understand artwork.
Embroidery Machines Do Not Read Images Directly
One of the most common misconceptions among beginners is believing embroidery machines can simply open and stitch image files.
Unfortunately, it doesn’t work that way.
Files like JPG, PNG, SVG, and PDF are graphic formats made for viewing on screens or printing on paper. They contain visual information, but embroidery machines need stitch instructions instead.

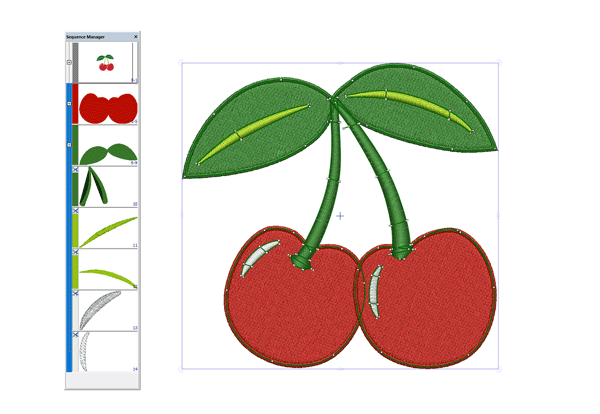

Before embroidery can begin, the artwork must be converted into a machine embroidery format using embroidery digitizing software. During this process, a digitizer manually creates stitch paths and sewing instructions that the machine can understand.
This is why embroidery digitizing is considered both a technical skill and an art form.
What Information Is Stored Inside an Embroidery File?
A digitized embroidery file contains much more than just the design shape.
Here are the main types of information stored inside the file:
1. Stitch Coordinates
The file contains X and Y coordinates that tell the machine where each stitch starts and ends.
The machine reads these coordinates one at a time while stitching.
For example:
- Move right
- Stitch downward
- Create satin column
- Jump to next section
The machine follows these commands sequentially.
2. Stitch Types
Different parts of a design use different stitch styles.
The file tells the machine whether to sew:
- Satin stitches
- Fill stitches (tatami)
- Running stitches
Each stitch type behaves differently depending on the fabric and design.

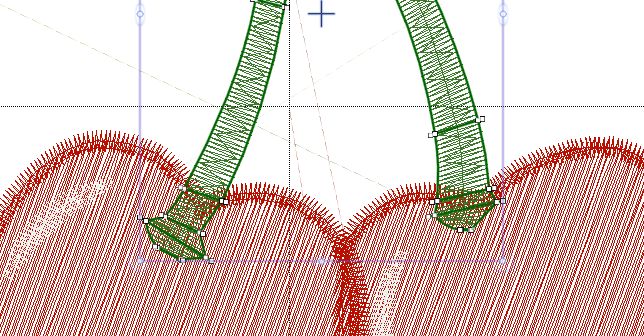

3. Stitch Direction
Direction is extremely important in embroidery.
The file instructs the machine on:
- Stitch angle
- Stitch flow
- Pathing sequence
Proper stitch direction helps create:
- Better texture
- Cleaner finishes
- Reduced puckering
- Realistic effects
4. Color Change Commands
When the design needs another thread color, the file includes a stop command.
The machine pauses so the operator can change thread colors.
Commercial multi-needle machines may switch colors automatically.
5. Trim Commands
Trim commands tell the machine when to cut thread between sections.
This helps reduce:
- Long jump stitches
- Loose threads
- Messy embroidery finishes
6. Machine Speed & Special Commands
Some advanced embroidery files may include:
- Slowdown commands
- Sequencing controls
- Sequin commands
- Applique instructions
These help optimize stitching performance.
How the Embroidery Machine Processes the File
Once the embroidery file is loaded into the machine, the embroidery process begins step by step as the machine reads and executes the instructions stored inside the design file.
First, the embroidery file is transferred to the machine. Depending on the machine model, this can happen through:
- USB drive
- WiFi connection
- Direct computer connection
- Memory card
Before stitching begins, the machine checks whether the embroidery file format is compatible with its system.
After the design is loaded, the machine starts reading the stitch data sequentially. It interprets the stitch coordinates and calculates how the hoop and needle should move throughout the embroidery process.
As the machine continues reading the file, it automatically performs actions such as:
- Moving the hoop
- Penetrating the fabric with the needle
- Changing thread colors
- Trimming threads
- Following stitch paths and directions
All of these actions happen in real time while the machine continuously processes instructions from the digitized embroidery file.
Why File Formats Matter
Different embroidery machines use different file formats.
Common embroidery formats include:
| Machine Brand | Common File Format |
|---|---|
| Tajima | DST |
| Brother | PES |
| Janome | JEF |
| Bernina | EXP |
| Husqvarna Viking | VP3 |
If the wrong file format is used, the machine may:
- Refuse to open the design
- Display errors
- Read stitches incorrectly
That’s why digitizers often provide multiple file formats.
What Happens If a File Is Poorly Digitized?
Why Professional Digitizing Is Important
Professional embroidery digitizers understand how embroidery machines interpret stitch data.
Instead of simply converting artwork automatically, experienced digitizers carefully plan every aspect of the design to improve sewing performance and final quality. They adjust stitch density based on fabric type, optimize underlay for stability, and minimize unnecessary trims to help machines run more efficiently.
Good digitizing doesn’t just improve appearance, it also reduces machine problems, saves production time, and creates cleaner embroidery overall.
This is especially important for complex designs, small lettering, cap embroidery, and 3D puff embroidery where precision matters most.
Modern Embroidery Machines Are Smarter Than Ever
Today’s embroidery machines are far more advanced than older models.
Modern commercial machines can:
- Detect thread breaks
- Automatically trim threads
- Change needles automatically
- Preview designs on screen
- Estimate completion times
However, they still rely completely on properly digitized files.
The file remains the “brain” behind the embroidery process.
Final Thoughts
Embroidery machines do not understand artwork the way humans do. They rely entirely on digitized embroidery files filled with detailed stitch instructions.
Every stitch, trim, movement, and color change is carefully mapped during the digitizing process. The embroidery machine simply follows those instructions with incredible precision.
Understanding how embroidery machines read files helps beginners appreciate why digitizing is such an important part of embroidery production.
A great design is not just about beautiful artwork — it’s about creating stitch instructions the machine can read efficiently and accurately.
